Description

Features:

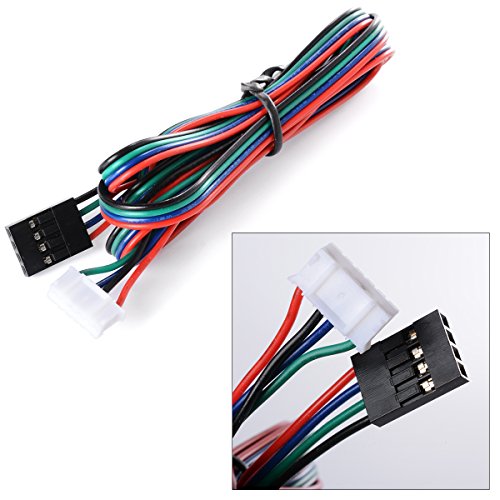

– 1m wire, one connect electrical machine, on the other end has variety optional ports; heat shrink tubing effect to prevent the wire tangled up
– Suitable for 17HD34008-22B mixing type stepping motor

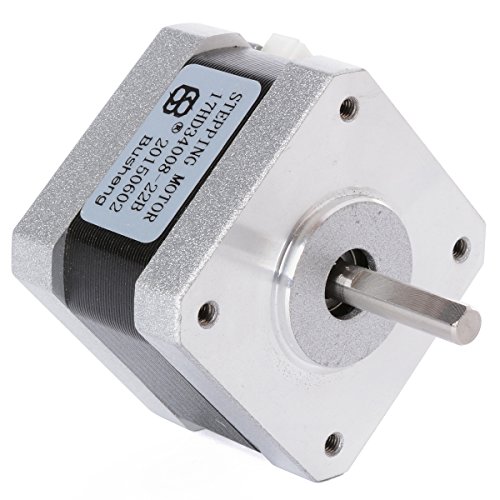

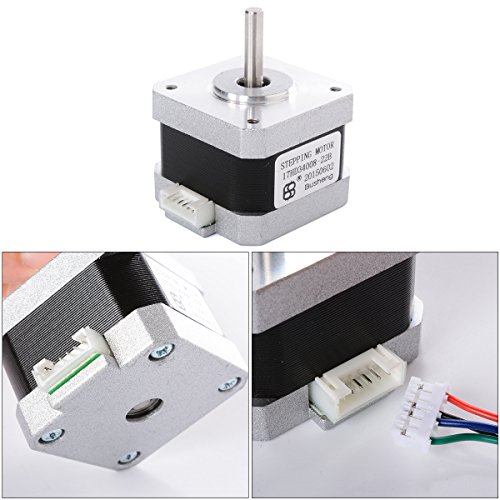

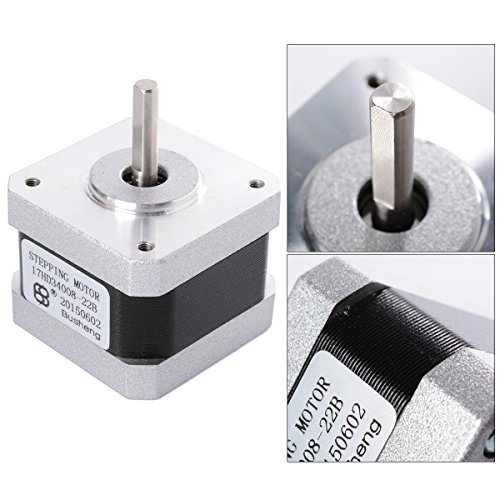

– Outside view: Show as the picture
– Drive mode: Chopping wave constant current drive
– Exciting mode: Two-phase 4-wire, it is available for rotation of forward and reverse
– Turn to: The order of power is AB-BC-CD-DA, from shaft end see C.W
– Rated current (one-phase): 1.5A DC
– Rated voltage: 3.45V
– Stepping angle: 1.8°

Specifications:

– Operating Conditions: Environment Temperature: -20~50?; RH: 90%MAX; Mounting Position: Axis horizontal or vertical installation
– Direct-current winding resistance (25?): 2.3?±10%
– Wnding inductance: 3mH±20%
– Cogging torque: 12mN.m REF.
– Holding torque: ?300mN.m?I=1.5A?
– Max. no-load starting frequency: ?1500pps
– Max. no-load running Frequency: ?8000pps
– Temperature rise: <80K
– Step Angle Accuracy: 1.8°± 5%
– Rotary inertia: 38g.cm2
– Motor Weight: 0.23Kg/PC REF.
– Insulation resistance: Cold insulation resistance should be more than 100m? (between the Motor stator core and Terminal)
– Dielectric strength: The space between the Motor stator core and Terminal should be able to withstand AC600V/1s without breaking down.
– Leakage current is less than 1mA.

Package included:

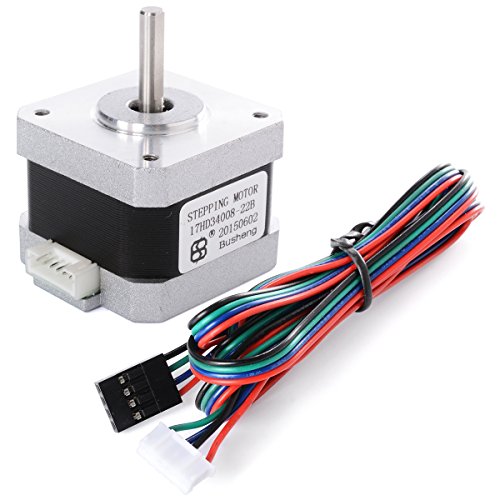

– 1 X Nema 17 3D Printer 2 Phase 4-wire Stepper Motor 1.8 Deg for 17HD34008-22B
– 1 X cable

High Quality and Brand New.
1m wire, one connect electrical machine, on the other end has variety optional ports; heat shrink tubing effect to prevent the wire tangled up.
Suitable for 17HD34008-22B mixing type stepping motor.
Outside view: Show as the picture.
Drive mode: Chopping wave constant current drive.
